Our products and services have the following strengths

Strength 1.
Competitive price and quality.

  • Lower cost compared to general touch screen introduction.
  • More durable than regular printed touch film.
  • Wheel and slide operation touch can be applied.

Strength 2.
Wide range of product applicability.

  • Applicable to products with curved surfaces.
  • Optional screen touch function can be implemented by combining with LCD/LED screen.

Strength 3.
Customized solution & quick delivery.

  • Comprehensive product consulting available, including in-house design and Support controller supply.
  • Fast delivery possible due to process simplification (average 5-7 days).

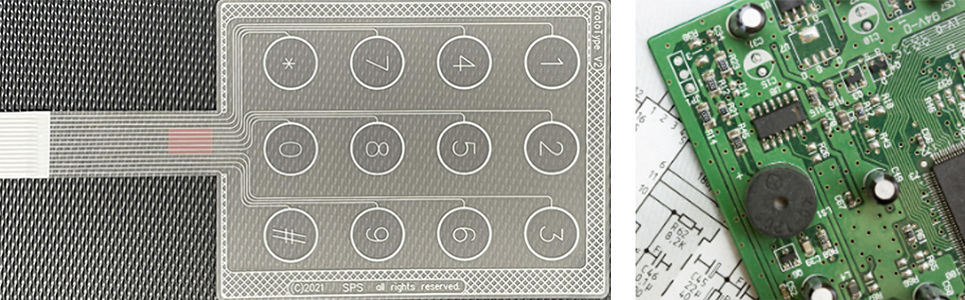

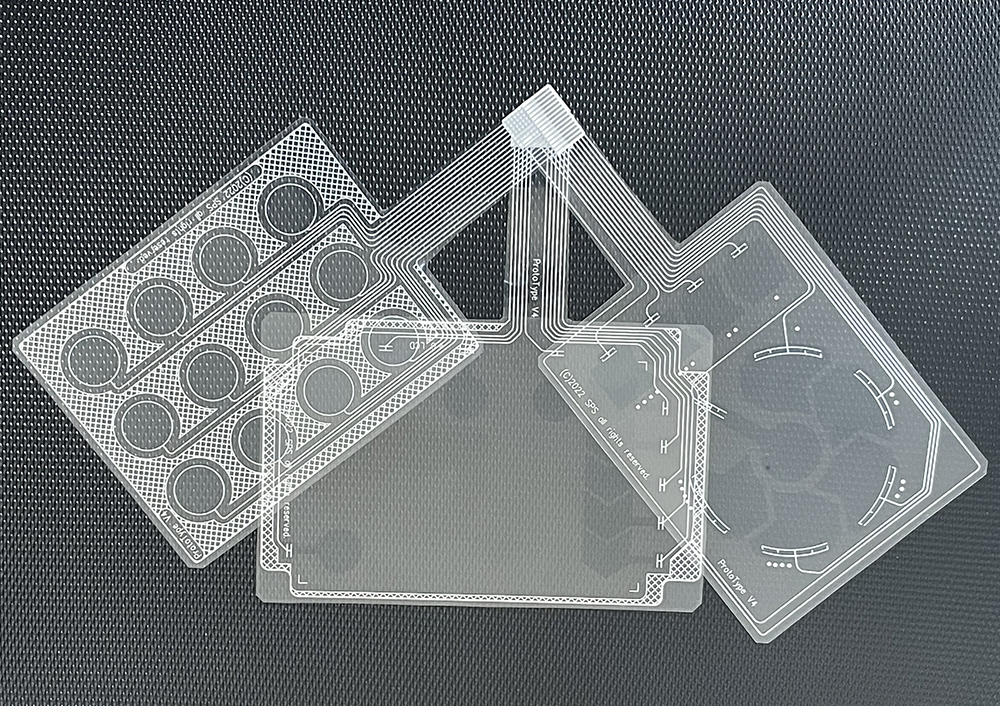

Our Main product, ‘Transparency Flexible Circuit Board (F-PCB)’, boasts flexibility and excellent durability by implementing metal circuitry and optimal ink conduction. High durability ensures a stable usability even when applying wheel or slide operation touch in addition to simple touch.

Strength 1. Competitive price and quality.

Metal coated film

 Flexibility and excellent durability by possessing core technologies for implementing metal circuits and optimal ink conductivity.

  • Lower cost compared to general touch screen introduction.
  • More durable than regular printed touch film.
  • Wheel and slide operation touch can be applied.

SPECIFICATION

Factor Value
Product Thickness 0.1 ~ 0.3T
Product Size ~ 500 mm
Product weight APX.  180 mg/in 2   ( w/ Adhesive )
Circuit Width 100 ㎛ ~
Thermal Resistance *1 120°C
TEMP &Humid Storge +85 °C , 85%RH, 504Hr
Thermal Shock -40 °C , +90 °C , 15min, 100 cycle
Bending Strength Radius 2mm, 180 °, 1sec, 100 cycle
Tensile Strength *1 12 kgf/in
Adhesive T-Peel 700 gf/in   (on Acryl )
Sheet resistance of  transparent electrode *1 250~500 Ω/sq
Transparency of transparent electrode  80%~ ( 85%~ for PET Side )

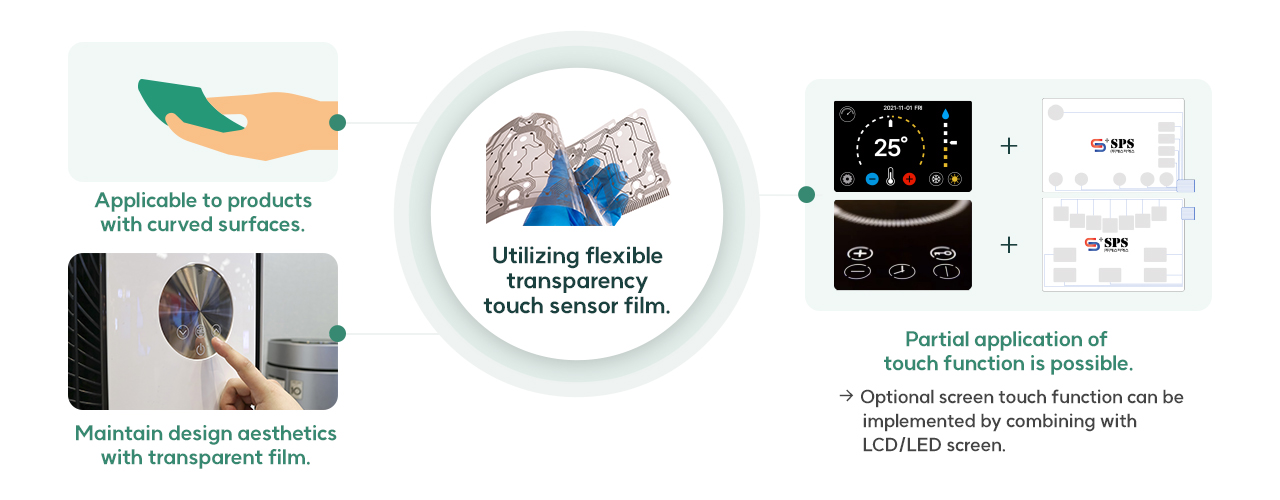

By using a transparenc touch sensor film using a flexible PET base, we can introduce touch functionality regardless of product shape or design. Additionally, touch functions can be implemented on buttons on existing LCD/LED screens using only a transparent touch sensor film without additional design or materials.

Strength 2. Wide range of product applicability.

We can handle all elements required to manufacture touch products in-house, from touch function/circuit design to related hardware (controllers, etc.). Additionally, through additional efforts, we have succeeded in simplifying the process, enabling faster delivery than other products.

Strength 3. Customized solution & quick delivery.

Own circuit design + Support for creating controllers required to implement touch functions

Comprehensive consulting required for
product manufacturing available.

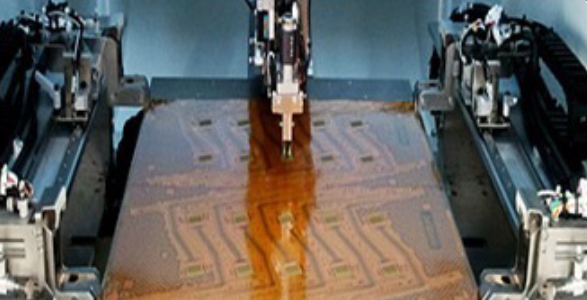

Process simplification

Fast delivery possible due to
process simplification (average 5-7 days).
